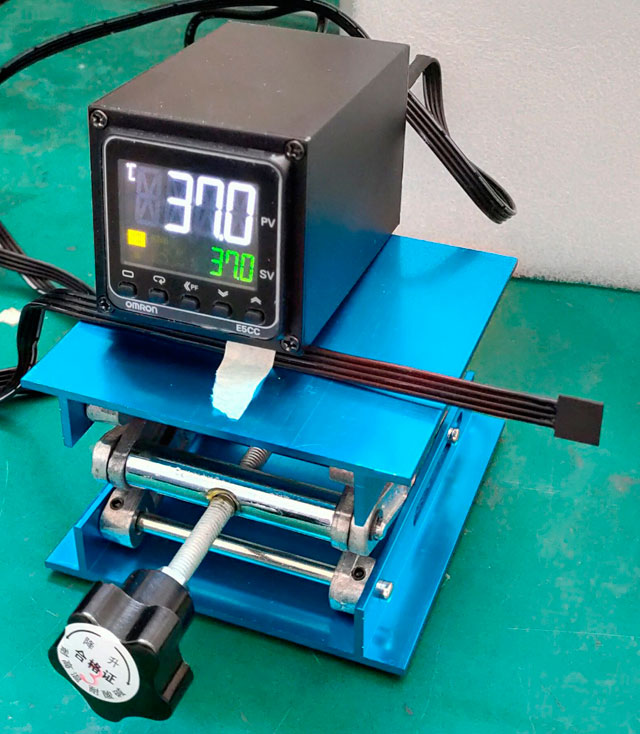

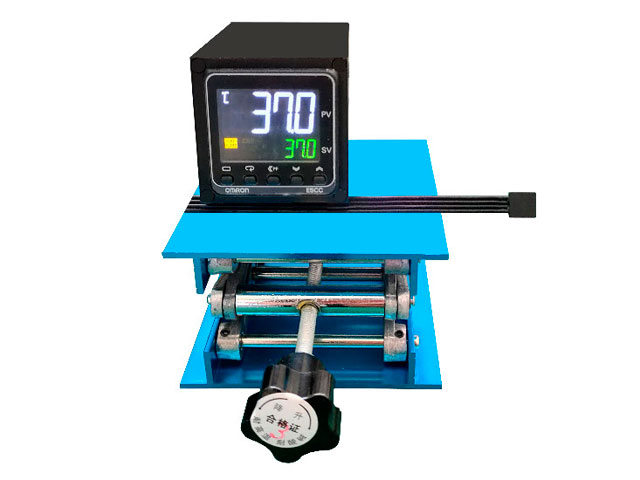

DY-HTX4 Chip Thermal Imaging Blackbody Furnace(Indoor temperature +5℃~45℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-HTX4 chip thermal imaging blackbody furnace(indoor temperature +5℃~45℃) is mainly used for matching thermal imaging remote screening and measurement of human temperature, small blackbody radiation surface, directly installed on the thermal imaging camera head, convenient, compact, do not need to configure a triangle bracket connected to the blackbody furnace.

[Product Features]

1, More portable, more light.

2. Weight ≤ 0.5kg.

3, Temperature setting of simple operation.Rapid heating, temperature control.

[Technical indicators]

Temperature range: room temperature +5℃-45℃

Control mode: PID automatic control

Temperature resolution: 0.1℃

Radiant surface: 10mm*10mm

Emissivity: 0.95

Power supply: 24V power supply

Temperature control host (length × width × height) : 90mmX55mmX55mm

Weight: 0.5 Kg or less
