[Product Introduction]

DY-XJY01B temperature and humidity field test system/temperature and humidity inspection instrument used to detect the temperature and humidity field of environmental test equipment, electric drying oven, biological incubator, resistance box, constant temperature and humidity box, heat treatment furnace, etc.

[Product Features]

The device is composed of automatic detection device, signal collector, main control chip, system software, etc. It can be automatically detected by the computer, also can be detected offline, and has the function of data storage, the device is configured with a 10-inch touch screen operation, wireless Bluetooth remote operation function, in the automatic measurement can store 8000 records, stored data can be queryable, can be uploaded to the computer through the USB interface or wireless Bluetooth.

◆ The weight of the equipment is 6KG, the size is 500mm*360mm*160mm, and the power supply is 8.4V6Ah lithium battery, which can be used continuously for 24 hours after one charge.

◆ The device can calculate the temperature deviation, fluctuation, uniformity, and uncertainty assessment according to the requirements of the specification, and regularly correct the deviation, directly generate records and certificates and print, improve the work efficiency.

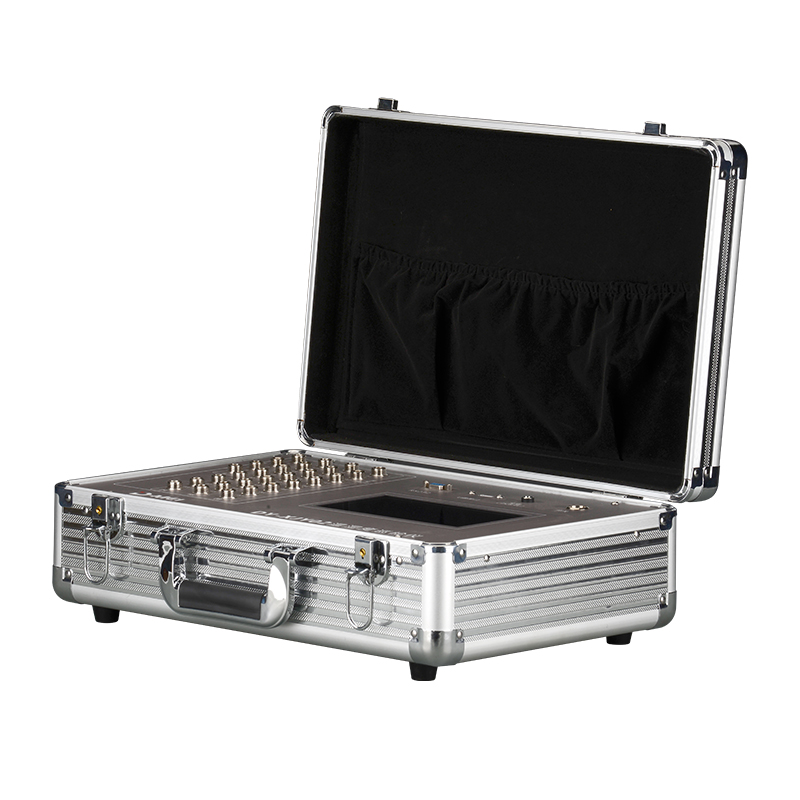

◆ Exquisite appearance, easy to carry, suitable for carrying out inspection. The operation software interface is clear, the operation is convenient and fast.

◆ The device has 15 temperature test channels, 4 humidity test channels, can be expanded according to customer needs. Imported humidity sensor is adopted to measure humidity with high reliability.

Thermocouple cold end compensation system automatic compensation.

◆ Temperature measuring element all kinds, can be used: thermocouple: S, K, N, E, J, T, thermal resistance: PT100, Cu100, Cu50; Temperature measurement range: -200℃~1600℃.

[Technical indicators]
