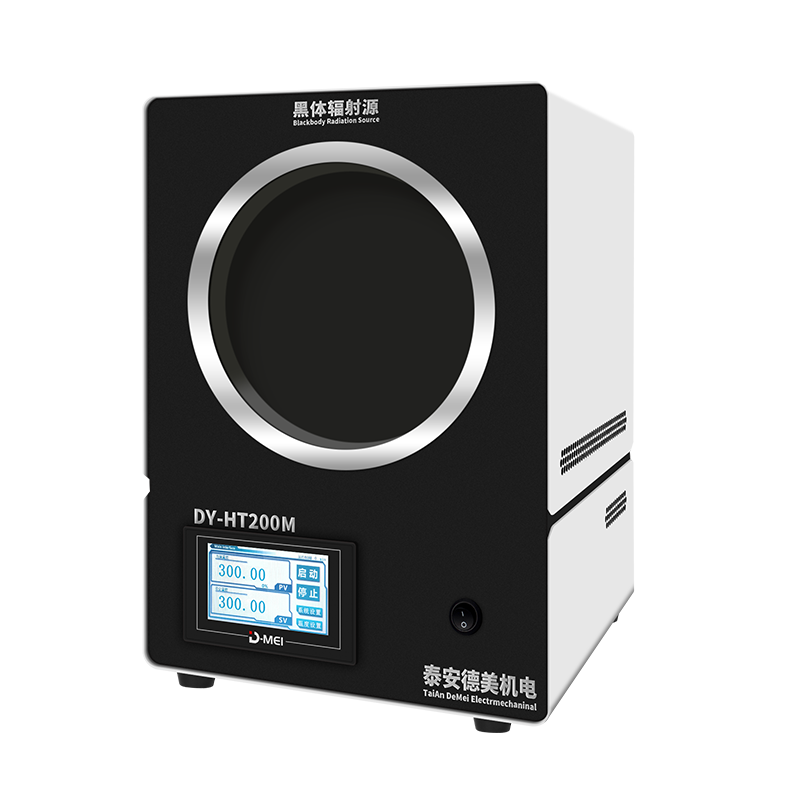

DY-HT200M Non-point Source Blackbody Furnace,Radiating Surface 200MM(Indoor Temperature +5℃-100℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

The non-point source blackbody furnace is a standard for infrared radiation. It is widely used in the technical index test of the process test and the qualification test during the development of the infrared detector. It can complete the response uniformity, response curve and death of the photosensitive surface of the infrared focal plane device. In the test of parameters such as element pixels. At the same time, the area source blackbody radiation source is the core equipment of the infrared imaging prism collimation device, and it cooperates with the infrared collimation optical system and infrared target to complete the key technical index test and performance evaluation of the infrared imaging system. It can meet the testing requirements of infrared imagers in my country's newly developed infrared imaging guided weapons, and can meet the testing requirements of infrared thermal imaging cameras that are widely used in medical, construction, security monitoring, environmental testing and other industries.

[Product Features]

1. More portable and lighter.Higher accuracy.

2. Human-machine interface, Chinese display, touch operation, beautiful and generous.

3. One-key temperature setting, easy to operate.Rapid heating, temperature control.

4. Copy the language interfaces of several countries and places according to customers' requirements, so as to facilitate export.

Product advantage

1) Novel appearance design, integrated structure of furnace body and temperature control instrument.

2) Isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.95, the resolution of 0.1℃.

3) Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.

4) Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.

5) Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.

[Technical Indicator]

Model: DY-HT200M

Temperature Range: Indoor Temperature +5℃-100℃

Control Mode: Touch Screen

Temperature Resolution: 0.1℃

Temperature Control: PID Automatic Control

Radiating Surface: Φ200mm

Emissivity: ≥0.95

Temperature Stability: Larger than 0.15℃ and 0.15% T (T is the radiation source temperature)

Temperature Uniformity: Larger than ±0.2℃ and 0.2% T (T is the radiation source temperature)(In 2/3 of the central area)

Power Supply: 220VAC 10A

Wire Line Diameter: ≥1.5㎡

Power: 800W

Dimension(L×W×H): 315mm×200mm×340mm

Weight: 15Kg

Optional: optional RS485 communication interface
