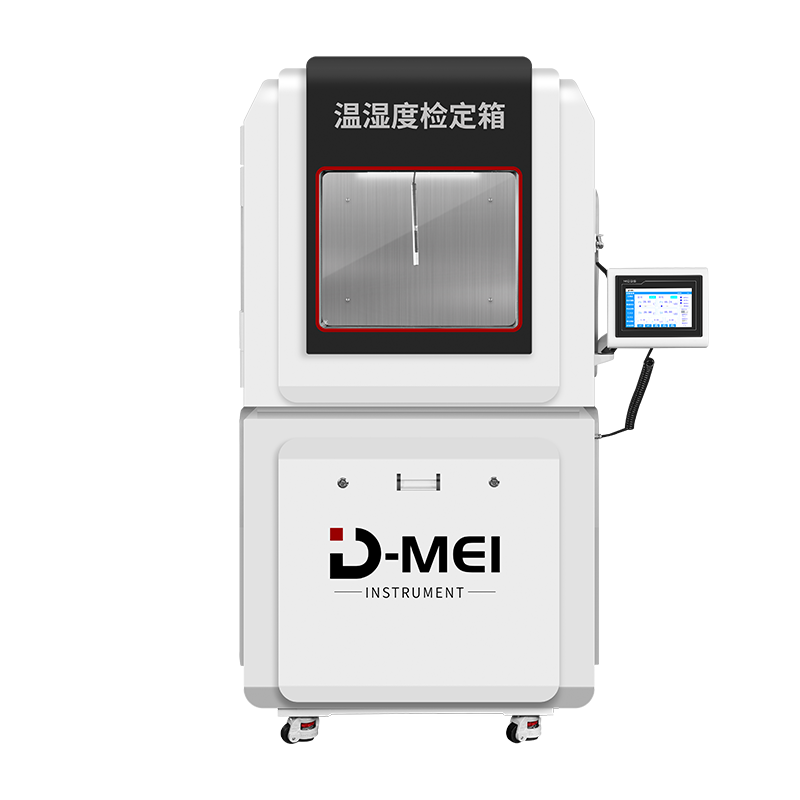

DY-WSX01 Temperature and Humidity Test Chamber(Standard Small Box 5℃-50℃/20%RH-95%RH)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

The temperature and humidity test box is specially developed by our company for the calibration of temperature and humidity meter. It has 360℃ observation window without dead Angle and high stability and fluctuation index. It is a special verification equipment for the detection of hair temperature and humidity meter (meter), dry and wet bulb thermometer, digital temperature and humidity meter and other kinds of temperature and humidity sensors.

It is suitable for all levels of metering departments, meteorological departments, electronic, electric power, military industry and other production departments, colleges and universities, scientific research institutes.

DY-WSX01A series is the standard temperature and humidity test box series of our company, and DY-WSX01B series is the upgraded products of our company, in order to meet a large number of testing needs.

[Product Features]

1. According to the actual requirements of a large number of temperature and humidity meter verification, the detection space is large, and multiple mechanical temperature and humidity meters can be detected at the same time, with high verification efficiency;

2. The design of double operation holes on the box makes the checker can put his hands deep into the box and adjust the instrument to be checked directly in the box, which greatly improves the verification efficiency;

3, the use of double-layer high temperature resistant anti-aging silicone sealing strip, can effectively ensure that the experimental area is not affected by the external environment:

4, ultra-thick insulation layer, designed three sides of the observation window vacuum glass, cold heat does not lose, to ensure the rapid and stable rise and cooling;

Frost protection device and controlled lighting for observation;

5, the use of human-machine interface, touch screen control, control interface is good, temperature control logic using programmable controller, can be a key to export stored data;

6, The control sensor adopts high precision temperature and humidity sensor, the original imported compressor known as "temperature control expert", high stability, with PID parameter self-tuning function, to ensure the system balance, fast and stable.

[Technical indicators]
